xstrive 4-channel SDI high-definition encoder can transmit SDI video stream as an independent IP output to various streaming media servers for real-time applications, such as Wowza media server, YouTube server, Windows media server and other social media platforms based on SRT/RTSP/RTMP /RTMPS/HLS/TS/ONVIF protocols.
Products Description

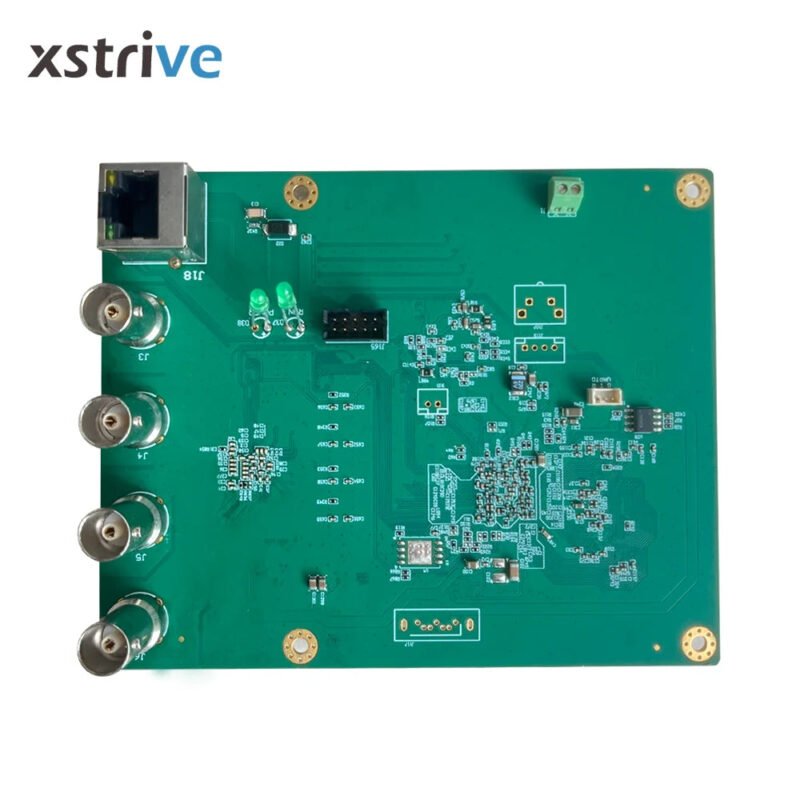

xstrive 4-channel SDI high-definition encoder can transmit SDI video stream as an independent IP output to various streaming media servers for real-time applications, such as Wowza media server, YouTube server, Windows media server and other social media platforms based on SRT/RTSP/RTMP /RTMPS/HLS/TS/ONVIF protocols.
It supports 4 SDI video streams and 8 network video streams, and each SDI video stream can output 2 sub-streams. It supports H.264/H.265 video coding format. Its high integration and cost-effective designs make it widely applied in hotel TV systems, school teaching, live broadcasting, etc. You can further develop applications on the basis of this coding board. We support customized product services including product functions, styles, logo , etc., Welcome to consult for any customer services at any time.
1.Support 4-channel SDI access, each channel supports main stream and sub-stream, and can output 8 streams at the same time.
2.The device can be managed through the web interface, and the IP address can be obtained automatically, and it supports switching between Chinese and English.
3. Gigabit network interface, can encode 8-channel network video stream, support DHCP protocol, http, UTP, RTSP, RTMP, RTMPS, SRT, RTP, ONVIF and other protocols.
4. Support AAC/G.711 audio coding format and analog audio output.
5. The main stream supports1080P@30HZ video encoding, and the sub stream supports 720P@60HZ video encoding.
6. Support WAN (web). Remote management in the LAN can be controlled and managed from mobile devices such as mobile phones, iPads, and laptops.
7. Support onvif protocol and NVR recording/NAS storage.
8. Support OSD,customized text and image overlay function,which allow users to add logo, characters, text, image overlay, change resolution, etc.
9.Support online firmware upgrade.
10. ODM/OEM service: provide ODM/OEM customization service, you can customize software function, logo, packaging, etc.as required. If you need customized service, please contact us.
|
Device model
|
XSWEDR-QSDI
|
|
Video input
|
4 SDI inputs (3G-SDI/HD-SDI)
|
|
Audio input
|
Not supported
|
|
Ethernet interface
|
10/100/1000 adaptive
|
|
Network video output protocol
|
SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF
|
|
Output video encoding format
|
H.264/H.265
|
|
Video encoding bitrate
|
35Kbps~80Mbps
|
|
Remote upgrade
|
support
|
|
Remote management
|
Supports remote modification of device parameters platform.xstrive.com can be used for registration
|
|
Working power supply
|
DC 12V（Complimentary 100-240V power adapter）
|
|
Operating temperature
|
0～70℃
|
|
Dirmensions
|
125*100mm
|
|
Weight
|
100g
|
Widely used in live broadcast, digital signage, multimedia display, hotel IPTV system, network video conference, network teaching, online TV, live broadcast of large event party.
XSTRIVE Technology Co., Ltd is committed to the development of software and hardware solutions for audio and video encoding and decoding and customer customization services. Founded in 2011, the company is a leading provider of professional audio and video solutions in China. It has a professional development team and is a national high-tech enterprise.
Products are sold to hundreds of laboratories and institutions in China. We can provide a complete set of solutions for video capture, video transmission, and video management. Also we provide high-quality products, which support OEM and ODM customization.
Shipping methods: FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly. We support PayPay, T/T, Western union,Veem and other payment methods.
FAQ
Q1,What is your shipping method? A1, FedEx, UPS, DHL, TNT, EMS and other international express shipping are supported. Normally, it takes 3-7 days from China to you, we will choose the best way for you based on our historical data to ensure that the package is received safely and smoothly
Q2, Can I get some samples? A2, yes, of course, we are honored to provide you some samples for testing, but the samples are not free. In order to ensure the correct and safe purchase of the product, we will provide an online test
Q3, Can you provide OEM service according to our requirements? Is it free? A3, with our professional and experienced design team, we can replace your company’s logo on the chassis, software interface and carton to provide OEM service
Q4, How about your warranty A4, 1 year warranty free repair or replacement. We provide online technical support through remote assistance, and repair services are provided by experienced after-sales specialists.
Q5, about delivery time A5, our fast delivery time is within 3 days after payment. In case of special circumstances, we guarantee to arrange delivery within 7 days after receipt of payment. If you would like more information about delivery time, please contact us
Q6, about import duties A6, in most countries, imported goods need to pay import tax, all our quotations and prices do not include import tax, as for the specific price, please consult the local customs, thank you for your understanding
